Avia repetitive scan rate #162

New Issue
Open
opened 2022-02-08 17:17:02 +01:00 by Naterater · 1 comment
Naterater commented 2022-02-08 17:17:02 +01:00 (Migrated from github.com)
Copy Link
Copy Source

We would like to reduce the rate that the Avia repeats in repetitive scanning mode in order to reduce point spacing and detect thinner objects during aerial survey (such as small wires). Currently the mirrors scan faster than 100Hz and the point patterning is not ideal for our application. We would like to slow that down to something in the range of 2-50Hz. This feature is independent from the scanner pulse rate (240kHz).

We would like to reduce the rate that the Avia repeats in repetitive scanning mode in order to reduce point spacing and detect thinner objects during aerial survey (such as small wires). Currently the mirrors scan faster than 100Hz and the point patterning is not ideal for our application. We would like to slow that down to something in the range of 2-50Hz. This feature is independent from the scanner pulse rate (240kHz).
Livox-SDK commented 2022-06-12 13:10:52 +02:00 (Migrated from github.com)
Copy Link
Copy Source

Hi Naterater

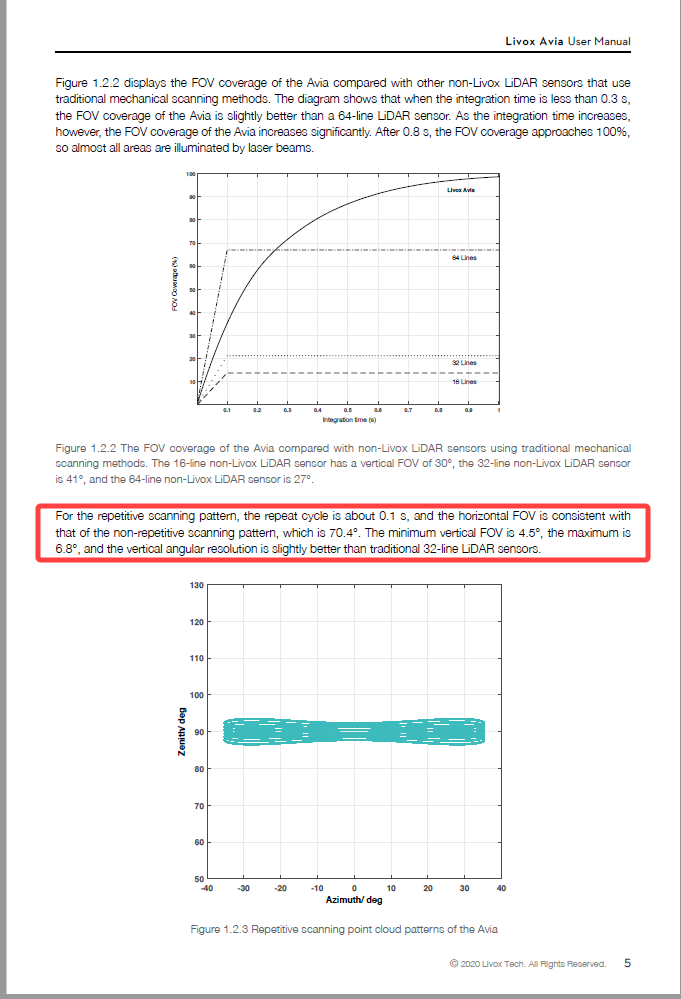

The repeats cycle in repetitive scanning mode is not able to be changed, which is about 0.1s .
Regarding to your inquiry, I would recommend you trying non-repetitive mode.

Hi Naterater The repeats cycle in repetitive scanning mode is not able to be changed, which is about 0.1s . Regarding to your inquiry, I would recommend you trying non-repetitive mode. ![image](https://user-images.githubusercontent.com/45850995/173230201-344bf4dc-8ea2-44ba-8939-80e783393590.png)
